Update 2015-06-08: Hadley Wickham and Jeroen Ooms took over the development on RMySQL. They are offering a precompiled version of the package which can be installed unter windows by using install.packages(“RMySQL”). Compiling under windows is no longer necessary.
Update 2015-01-02: I slightly updated this tutorial based on the comments.
Update 2014-12-16: This tutorial also works on Windows 8.1!

Connecting R with MySQL can be somewhat difficult using Windows. The package RMySQL is not available as a precompiled zip-archive. It needs the installed libmysqll.dll library to be working and must therefore be compiled on your machine. Linux and Mac OSX have build-in compilers, Windows does not.
This tutorial shows how to install RMySQL under Windows and give some hints how to avoid too much extra work then updating R.

Step 1: Requirements

  • R (surprise! :-) )
  • RTools (compiling environment for Windows)
  • MySQL-Server (usually the community edition, INCLUDING the C-Connector)

Step 2: Setup and Configuring

I assume that you already have an installed R and the MySQL-Server. This tutorial uses a 64-bit-system (which you also may have nowadays, though). The next step is to install RTools. The offered install options are fine, additional libraries like TCL/TK etc. are maybe needed if you want to compile packages who need them.

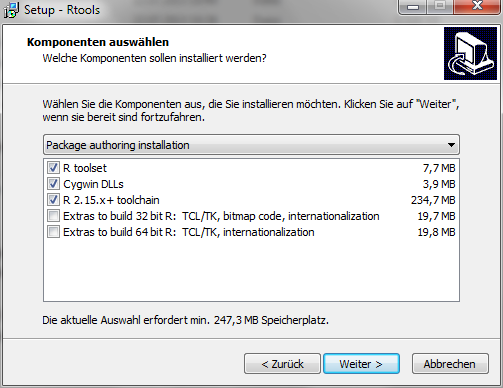

RTools Step 1

The next window is really arkward. Just leave the the two checkboxes checked and move on to the next step.

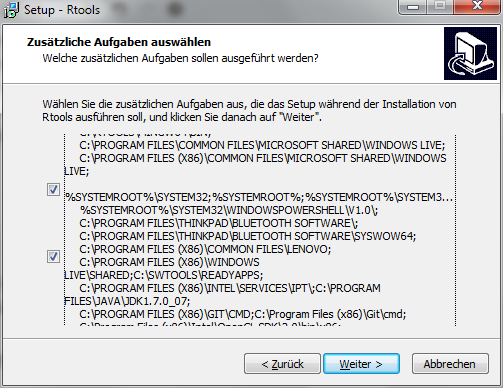

RTools Step 2

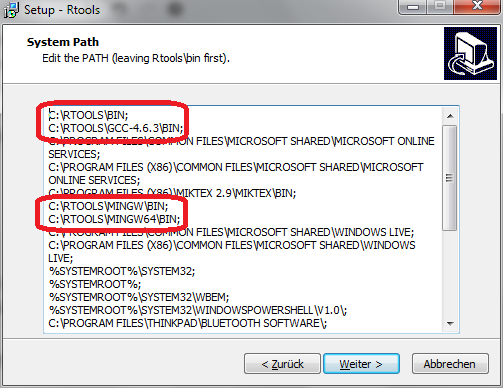

Editing the System Path is important and tells R where the compiler is located. There should be four entries. Please be aware when updating RTools: This sometimes causes double entries (can be deleted).

RTools Step 3

Step 3: Tell Windows (and R) where the MySQL-Libraries are

RMySQL needs the libmysql.dll to compile successfully. The file should be stored in lib-Folder of your MySQL installation. Usually the path should be C:\Program Files\MySQL\MySQL Server 5.5\lib. The problem is that RMySQL expects it to be stored in the bin-Folder (usually C:\Program Files\MySQL\MySQL Server 5.5\bin). So you have to copy it by hand. This step is essential for successful compiling!

Telling R where to find the libraries can be done by three different options: Command line, environment file (.Renviron) or environment variables. Using command line options must be passed to R at every start which makes it complicated to use IDEs like Rstudio. Using the enviroment file is easier but you have to copy it into every new installation/update of R (which also requires writing rights). I suggest using environment variables as this causes no problems/extra work - espacially when updating R.

Your environment variables are located under Control Panel → User Accunts → Change my environment variables. My environment variables look like this (the window is in German as you might have noticed ;-) ). Now you can add a new variable called MYSQL_HOME with the value C:\Program Files\MySQL\MySQL Server 5.5*. The last backslash should be added to avoid compiling errors (compare some comments below). If this does not help, pease try to use slashes instead of backslashes (C:/Program Files/MySQL/MySQL Server 5.5/).
My installed packages are located at *C:\myRLib using the variable R_LIBS (this is optional).

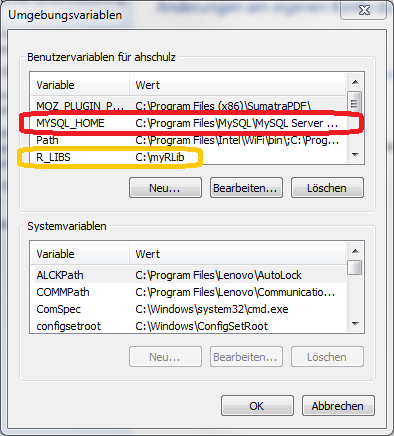

Environment Variables

Step 4: Compiling

Now restart R if you have already opened it and install RMySQL from source:
install.packages(“RMySQL”, type = “source”)
Your output should look like this. I truncated all warnings which could usually be ignored.

> install.packages("RMySQL", type = "source")
Warning in install.packages :
  package 'RMySQL' is not available (for R version 3.0.1)
trying URL 'http://ftp5.gwdg.de/pub/misc/cran/src/contrib/RMySQL_0.9-3.tar.gz'
Content type 'application/x-gzip' length 165363 bytes (161 Kb)
opened URL
downloaded 161 Kb

* installing *source* package 'RMySQL' ...
** Paket 'RMySQL' erfolgreich entpackt und MD5 Summen überprüft
checking for $MYSQL_HOME... C:\Program Files\MySQL\MySQL Server 5.5
** libs
gcc -m64 -I"C:/PROGRA~1/R/R-30~1.1/include" -DNDEBUG -I"C:\Program Files\MySQL\MySQL Server 5.5"/include    -I"d:/RCompile/CRANpkg/extralibs64/local/include"     -O2 -Wall  -std=gnu99 -mtune=core2 -c RS-DBI.c -o RS-DBI.o
gcc -m64 -I"C:/PROGRA~1/R/R-30~1.1/include" -DNDEBUG -I"C:\Program Files\MySQL\MySQL Server 5.5"/include    -I"d:/RCompile/CRANpkg/extralibs64/local/include"     -O2 -Wall  -std=gnu99 -mtune=core2 -c RS-MySQL.c -o RS-MySQL.o
gcc -m64 -shared -s -static-libgcc -o RMySQL.dll tmp.def RS-DBI.o RS-MySQL.o C:\Program Files\MySQL\MySQL Server 5.5/bin/libmySQL.dll -Ld:/RCompile/CRANpkg/extralibs64/local/lib/x64 -Ld:/RCompile/CRANpkg/extralibs64/local/lib -LC:/PROGRA~1/R/R-30~1.1/bin/x64 -lR
installing to c:/myRLib/RMySQL/libs/x64
** R
** inst
** preparing package for lazy loading
Creating a generic function for 'format' from package 'base' in package 'RMySQL'
Creating a generic function for 'print' from package 'base' in package 'RMySQL'
** help
*** installing help indices
** building package indices
** installing vignettes
** testing if installed package can be loaded
MYSQL_HOME defined as C:\Program Files\MySQL\MySQL Server 5.5
* DONE (RMySQL)

No you can load your new packages and access your local MySQL-Server.

library(RMySQL)
con <- dbConnect(MySQL(), host="127.0.0.1", port= 3306, user="user",
   password = "password", dbname="db")

I hope this will help someone installing RMySQL properly.
